VARIABLE SPEED DRIVES |
A.C. Motor Speed Controllers
A range of miniature inverter drives with a fully self-contained digital display and touch membrane control panel, for free standing use. The unit also features full load regenerative braking. Motors must be three-phase and delta (240V) connected for single-phase use.

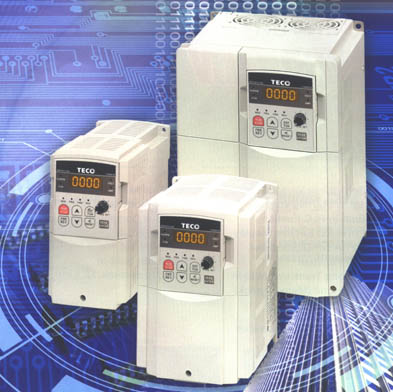

CV7300 Drives
Single-Phase In – Three-Phase Out (220-240 V)
Model |
kW |
HP |
Price (£) |
Carriage (£) |
CV7300 |
0.37 |
0.5 |
180 |
10 |
CV7300 |
0.75 |
1 |
196 |
10 |
CV7300 |
1.5 |
2 |
285 |
10 |
CV7300 |
2.2 |
3 |
370 |
10 |
Three-Phase In – Three-Phase Out (415 V)
Model |
kW |
HP |
Price (£) |
Carriage (£) |
CV7300 |
0.75 |
1 |
315 |
10 |
CV7300 |
1.5 |
2 |
392 |
10 |
CV7300 |
2.2 |
3 |
451 |
10 |
CV7300 |
3.75 |
5 |
541 |
15 |
CV7300 |
5.5 |
7.5 |
662 |
18 |
CV7300 |
7.5 |
10 |
852 |
20 |
Please note these prices are list, discounts are
negotiable dependant on quantity.
Larger sizes available please contact us for details.
Minicon – variable speed drive unit
New compact range with enhanced functions and also easier to use. Complete with built-in filter, remote control available, and easily fitted. Dimensions: W x H x D = 72 x 132 x 118 mm.
Minicon Drive
Watts |
HP |
Price (£) |
Carriage (£) |
180 |
0.25 |
140 |
10 |
370 |
0.5 |
150 |
10 |
750 |
1.0 |
160 |
10 |
New Three-Phase Motors
4 pole, 1425 R.P.M. Dual voltage 240/415
kW |
HP |
Frame |
Foot (£) |
Flange (£) |
Carriage (£) |
0.37 |
0.5 |
D71 |
64 |
71 |
10 |
0.55 |
0.75 |
D71 |
70 |
80 |
10 |
0.75 |
1 |
D80 |
80 |
92 |
10 |
1.1 |
1.5 |
D90 |
92 |
102 |
12 |
1.5 |
2 |
D90 |
105 |
113 |
12 |
2.2 |
3 |
D100 |
130 |
141 |
16 |
Variable Speed Conversion Kit For Record Woodturning Lathes
Easily fitted, full instructions supplied. The kit consists of:
v New three-phase motor, choice of two sizes – ½ HP and 1 HP.
v ½ HP kits to convert CL0, CL1, RPML300, and DML24X of the Record range of lathes.
v All Speed Genies are cubiculised to IP65 standard (dust and liquid proof) in a steel enclosure. The cabinet is fitted with an illuminated mains ON/OFF rocker switch, a potentiometer with scale, an ON/OFF or FWD/OFF/REV toggle switch, and a mushroom head emergency stop button.
Kit Size |
Drive |
Price (£) |
Carriage (£) |
½ HP / 0.37 kWh |
0.40 kWh |
289 |
12 |
1HP / 0.75 kWh |
0.75 kWh |
309 |
14 |

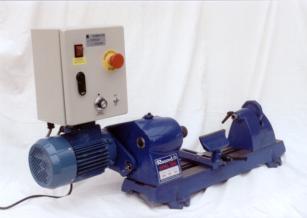

Converted Record DML24X |
Converted Record RPML300 |
||
Kits available for other lathes.
Lathe Model |
Kit Size |
Price with Motor (£) |
Price without Motor (£) |
Carriage (£) |

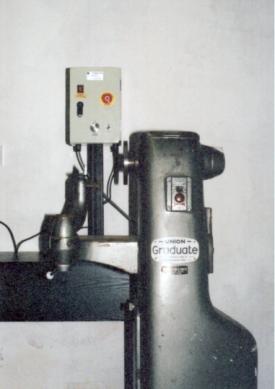

Union Graduate |
1 HP / 0.75kWh |
328 |
259 |
14 |
Union Jubilee |
1 HP / 0.75kWh |
328 |
259 |
14 |
Nova
3000 |
1
HP / 0.75kWh |
328 |
n/a |
14 |
Viceroy |
1 HP / 0.75kWh |
328 |
259 |
14 |
Other makes and models can be converted. Please contact us with details for a price.
The following options are available for all of the above kits:
1. Optional forward / reverse switch, add £5.
2. Heavy duty remote control, add £49.99.
3. Jack plug fitting foot switch, add £19.99.
We also offer a bespoke conversion kit service for larger lathes, home-made lathes, industrial type lathes, etc. These kits are fed with a single-phase 240 Volt supply like the ones mentioned above.
Kit Size |
Price with Motor (£) |
Price without Motor (£) |
Carriage (£) |
2HP / 1.5kWh |
419 |
359 |
14 |
3HP / 2.2kWh |
519 |
459 |
14 |
The options listed above are also applicable to these kits if you wish.
